IRIO an BF

Name: Baltensweiler AG
Price range: $

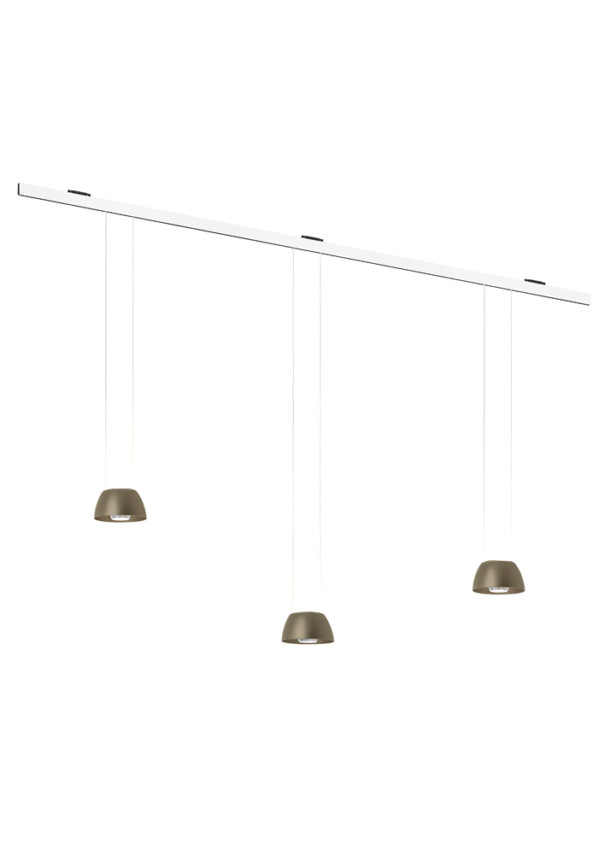

The pendants from BALTENSWEILER and the track from buschfeld combine to create a simple lighting system that blends harmoniously into any room concept. With its minimalist pendants, the luminaire sets subtle accents above the counter or dining table. Sophisticated details turn it into a real highlight.

More

The IRIO P an BF offers a maximum of flexibility and functionality. The position of the pendants can be chosen as required during installation. The luminaire head can be easily adjusted vertically any time by simply pulling it. It can be wound up mechanically using the handle integrated in the luminaire head. Equipped with two light sources, the luminaire provides both direct and indirect light. The direct light can be optimised with a magnetically held optic.

The light can be continuously dimmed, switched and switched on/off via the integrated switch in the head, and also via the CASAMBI app or a CASAMBI controller.

BF track, length 200 cm (48 Vdc)

with control gear box incl. control gear (100 W / 220-240 Vac / 48 Vdc)

IRIO pendant / 2700 K

2 COB LEDs

15.5 W per pendant / 48 Vdc

1505 lm per pendant

IRIO Pendant / DTW 2850-1800 K

2 COB-LEDs

15 W per pendant / 48 Vdc

1820 lm per pendant

IRIO spotlight / 2700 K

1 COB-LED

15.5 W per spotlight / 48 Vdc

1350 lm per spotlight

IRIO spotlight / DTW 2850-1800 K

1 COB LED

15 W per spotlight / 48 Vdc

1140 lm per spotlight

General information

Cable	transparent, 3.5m
Control system	CASAMBI ready

Downloads

Data sheet

IRIO an BF Datenblatt

2.972 MB

PDF

Manuals

Mounting and operation instructions IRIO an BF Pendel CASAMBI prog	20.583 MB	PDF
Mounting and operation instructions IRIO an BF Pendel CASAMBI ready	20.723 MB	PDF

Technical data
- Light source COB-LED
- Light color 2700 K | 2850-1800 K
- Input voltage 220-240 Vac / 48 Vdc
- Clock frequency 50-60 Hz
